@Ralph Unger How high can that go, or we already there?by Jim 5/10/2011 3:46:23 AM
Sheesh, that's 642.2ºF
(You can copy from most PDFs.)by Rob in SF 5/10/2011 3:47:56 AM
339 vs 246. What does that indicate?by radioguy 5/10/2011 3:48:01 AM- So are we near running temps for the operating reactor?by radioguy 5/10/2011 3:48:49 AM
Design temperature of the reactor ※ (maximum temperature durability) is indicated by a dotted line at 302.by Ralph Unger 5/10/2011 3:48:52 AM- @radioguy It wouldn't get that hot normally because of the water flow.by Jim 5/10/2011 3:50:20 AM
- Copy from PDF's? Yep, unless they are in Japanese. :-)by Ralph Unger 5/10/2011 3:50:20 AM
- Now I see why you guys wanted Bo to translate that graph!by Ralph Unger 5/10/2011 3:51:14 AM
- @Ralph Unger I think that is my problem, but I do have jp language pack installed. so idkby Jim 5/10/2011 3:51:19 AM
• Title: Power meter related to temperature
1. (blank) DATE
2. Water supply nozzle temperature 216.4
3. RPV bottom part head temperature 238.4
4. Bronze phalange 333.9
5. Temperature @ bottom of pressure container 154.3
6. RPV temperature at bolt 246.2
7. Temperature at lower part of bronze phalange 173.3
8. Release valve security 2-71D leak 109.5
9. Release valve security 2-71F leak 113.3
10. Steam/vapor isolating valve 2-86A leak 63.1
11. Recovery temperature 147.4
12. RPV (Bero or Vero) sealing 209.7
13. S/C pool water temperature A 40
14. S/C pool water temperature B 40by Angie 5/10/2011 3:51:21 AM- Ok that is all the temps and the corresponding names for the columsby Angie 5/10/2011 3:51:54 AM
- @Angie ty, that's better. so yeah 333.9 , ha big diffby Jim 5/10/2011 3:52:41 AM
- Bronze phalange is the water nozzle temperature reactor I guess.by Ralph Unger 5/10/2011 3:53:04 AM
- No, what could it be....by Ralph Unger 5/10/2011 3:54:33 AM
- Now what ever it is used on or for and where ever it is, it is the hottest temp.......by Angie 5/10/2011 3:56:03 AM
- followup article on attempts to identify a source for the iodine 131 levels in Philadelphia (pre dating events in Japan, exceeding EPA limits multiple times over a period of several years and it was not disclosed until recently) www.philly.comby momof3 5/10/2011 3:58:28 AM
- Also lower part bronze phalange 173.3, pretty large diff.by Jim 5/10/2011 3:58:37 AM
- NEWS ADVISORY: Gov't to seek minimizing financial burdens in supporting TEPCO: Kaieda
english.kyodonews.jpby estacion 5/10/2011 3:58:52 AM - @Jim yep so what part does it play in the reactor or in gathering temps?by Angie 5/10/2011 4:00:03 AM
- @Angie idk, maybe Ralph is looking something up. I thought he had it.by Jim 5/10/2011 4:01:07 AM
- Still searching...by Ralph Unger 5/10/2011 4:03:04 AM
- @Jim If the pdf is Japanese text rather than image, you can try sucking it into google docs with the import text from pdf and see if it works. Then share the doc and give that link to google so it can translate for you. iffy, but it works with many languages.by radioguy 5/10/2011 4:04:24 AM
- @Angie The 'sealing' at 209 doesn't sound too good either.by Jim 5/10/2011 4:04:38 AM
- @radioguy Thanks.by Jim 5/10/2011 4:05:14 AM
- @Jim non of it sounds any good! And I have no idea what I am looking for so I will wait for @Ralph lolby Angie 5/10/2011 4:07:45 AM
- I think is a pressure reading or flow rate rather then a temperature reading.by Ralph Unger 5/10/2011 4:08:20 AM
- Turbine pressure I guess.by Ralph Unger 5/10/2011 4:11:38 AM
- @Ralph Unger hmmm I was sure it was all temps on that one is called "Power meter related to temperature" I thought the pressurewas on the other doc?? I maybe very wrong lol I really dont know what I am looking for.by Angie 5/10/2011 4:11:45 AM
- Me too.by Ralph Unger 5/10/2011 4:12:04 AM
#Fukushima I Nuke Plant: TEPCO Adds Hydrazine to Water for Reactors 3 and 4 Spent Fuel Pools
According to Asahi Shinbun (in Japanese; 1:25AM JST 5/10/2011), TEPCO has started to mix "hydrazine" (N2H4) with the water that is being poured into the Spent Fuel Pools in Reactors 3 and 4 at Fukushima I Nuke Plant. ex-skf.blogspot.comby Majjham Zazen 5/10/2011 4:13:00 AM- @Ralph Unger I was trying to figure out what other units that could be...by Jim 5/10/2011 4:13:04 AM
- This google result (2nd one) I cant get it to open can anyone? hs.e-to-china.com www.google.com.auby Angie 5/10/2011 4:13:41 AM
- Turbine Main Steam System...... Checking , all I can check against is an abwr though.by Ralph Unger 5/10/2011 4:14:14 AM
- Normal flow is a lot higher then that number, but I am finding lb/h not pressure.by Ralph Unger 5/10/2011 4:16:03 AM

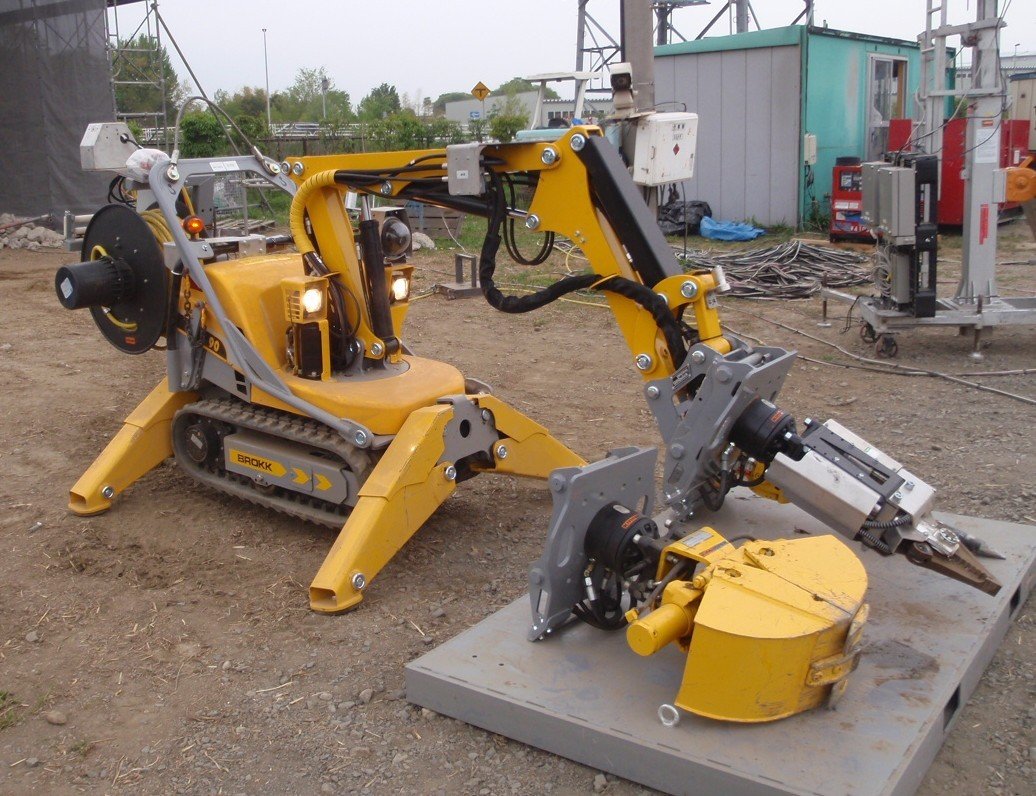

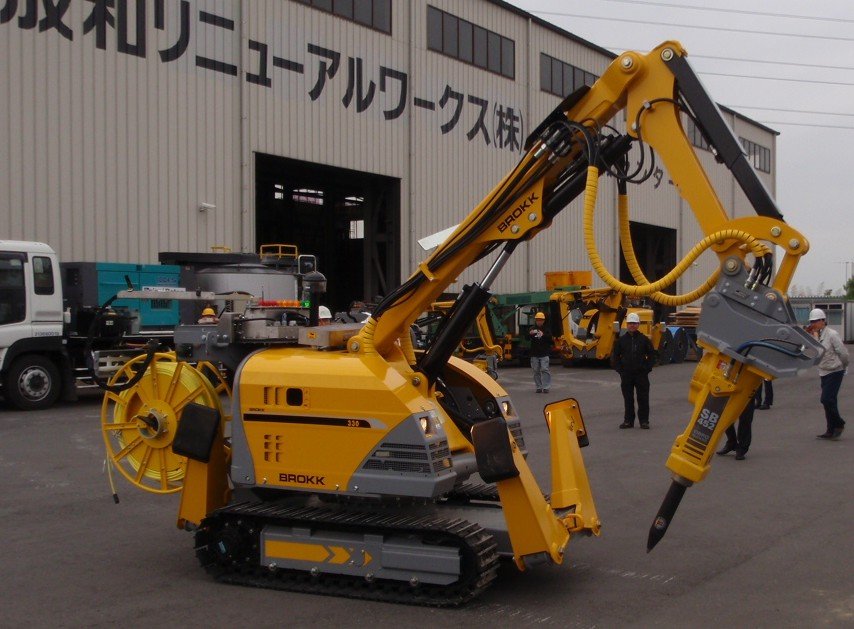

Nu Bots...
www.tepco.co.jpby Rob in SF via Tepco.co.jp 5/10/2011 4:19:06 AM
by Rob in SF via Tepco.co.jp 5/10/2011 4:19:09 AM

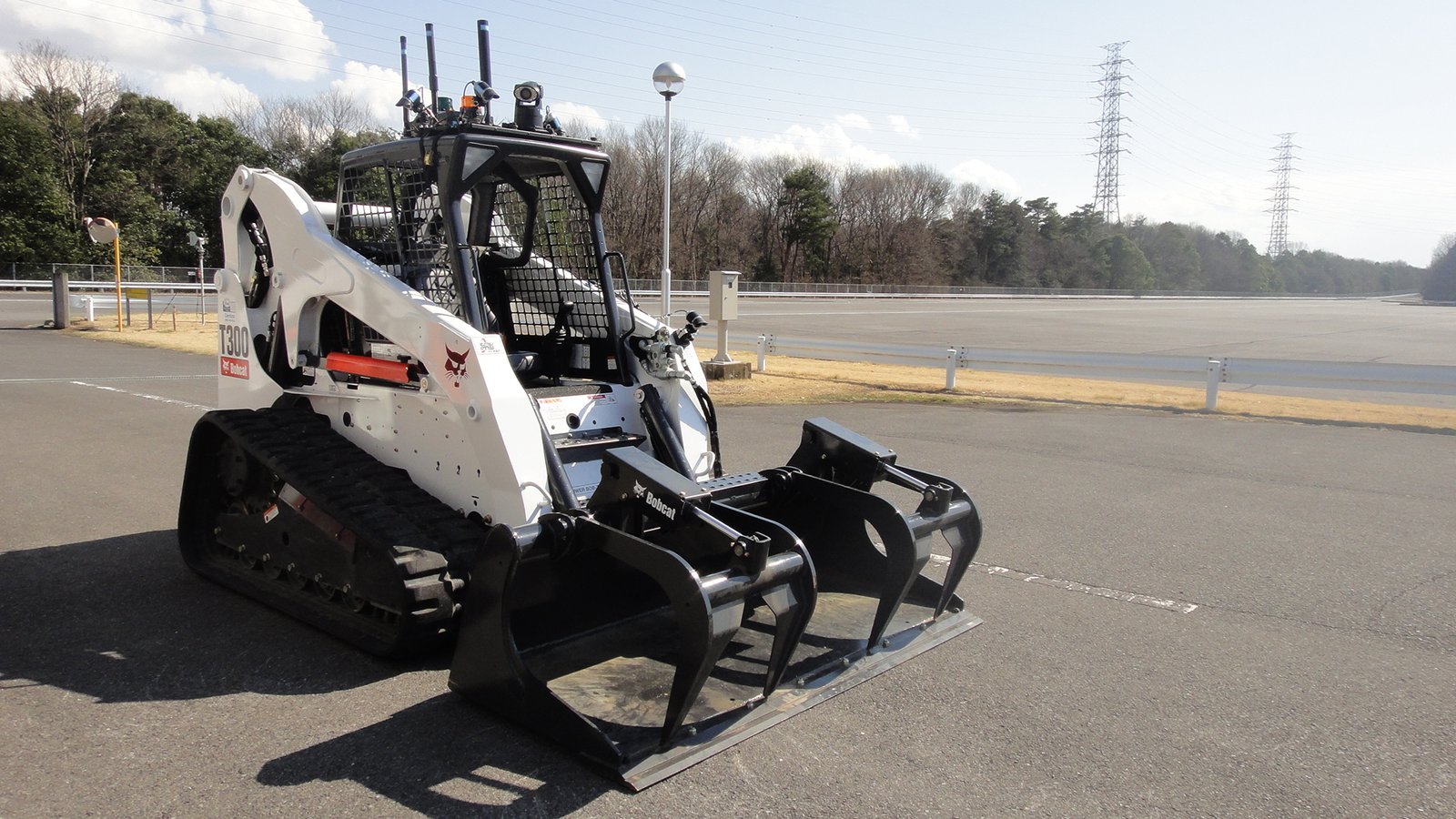

R/C Bobcat.
www.tepco.co.jpby Rob in SF via Tepco.co.jp 5/10/2011 4:20:00 AM- Developed in partnership with Westinghouse Electric Company and Texas Utilities, the FlangeBot wireless robot provides remote cleaning and inspection of the nuclear reactor vessel flange. www.rosys.comby Jim 5/10/2011 4:20:14 AM
- Feed water flow rate I think. pbadupws.nrc.govby Ralph Unger 5/10/2011 4:20:49 AM
- @Ralph Unger Your post is already on google about the flange!by Jim 5/10/2011 4:21:27 AM
- My eyes feel like onions after reading that.by Ralph Unger 5/10/2011 4:21:49 AM
- Now that's a flangebot...by Jim 5/10/2011 4:22:38 AM
- Ok, I think the bronze phalange mentioned in the TEPCO documents is the is the feed water flow rate to the reactor.by Ralph Unger 5/10/2011 4:23:15 AM
- Hopefully that will show up on google.by Ralph Unger 5/10/2011 4:24:54 AM
www.doosan.com REACTOR VESSEL FLANGE
The nuclear reactor vessel flange is welted to the top side of the vessel and has 54 holes for the studs. Inside the flange, there are the support to hold the internal articles of the reactor and keyway. A metal ring, which acts as a gasket, is compressed to the side that is assembled with the head to seal the vessel so that no coolant is leaked from inside.by Jim via Doosan 5/10/2011 4:25:58 AM
