@all you "misguided environmentalists" !
by Edano 4/19/2011 11:09:48 AM

@fitter : "the true diversity of nuclear engineering"
by Edano 4/19/2011 11:11:13 AM

If anyone finds a youtube version of this or the still photos please let me know, can't get screen caps out of the NHK embedded video. www3.nhk.or.jp
by Nancy 4/19/2011 11:11:55 AM

@Edano i missed most of the conversation, what is a misguides eniroment,,,,
by fitter 4/19/2011 11:12:19 AM

@fitter : bpr.berkeley.edu rob posted this before.
by Edano 4/19/2011 11:13:12 AM

@fitter We have some systems blueprints from the oyster creek reactor that might be of use. Looks like same age and model as #1 fukushimafaq.wikispaces.com

I also have some piping and systems images at www.houseoffoust.com www.houseoffoust.com
by Nancy edited by elainekirk 4/19/2011 11:13:42 AM

@Nancy : i don't think oyster creek hekpls us. it is just a blueprint of the "lightbulb" containment. nothing new to us.
by Edano 4/19/2011 11:17:08 AM

@Edano a couple of people last night wanted it posted and felt the systems being documented was useful.
by Nancy 4/19/2011 11:17:53 AM

should be back in about an hour.
by Nancy 4/19/2011 11:18:18 AM

@Nancy i am haveing time issues, job tormado damage.. taxes ... could you shoot me some pic to my e-mail the moniter is better and it a handi-cap key board.. i you really like to anyalis what you have done... i thein
by fitter 4/19/2011 11:18:28 AM

@Nancy hit enter did't want to mis you.... i think looking the equipment is a partial key... i ve seen some thing in the recent pic... also if you are on utube look for the "factory expolision in texas ...the acytelene gas one.... it will show you a great visuable what one bottle can do
by fitter 4/19/2011 11:20:40 AM

@Edano all these drawings help, we just need to be careful that they list were they are... looking at the one yesterday i counted 36 penetrration from the contaiment vessel and i susspect there may be more, i had read there are 56,, those are all the weakest links other then the gasketed areas.....
by fitter 4/19/2011 11:23:30 AM

@Edano what field are you in ?? and country//
by fitter 4/19/2011 11:24:05 AM

@fitter : the mark1 lightbulb design has been critizised for possibly causing a rocket-like explosion if the containment is too much under pressure. it can "shoot" the containment cap into the air, and maybe that's what has happened in #3 explosion.
by Edano 4/19/2011 11:24:21 AM

hi all
by Jocelyn Mayer 4/19/2011 11:24:48 AM

@Edano: sure not !
#3 containment vessel was under pressure one week after the explosion; it's an evidence that the containment cap is in place; gasses laws are universal: if the cap was removed, the containment vessel would have instantly reached atmospheric pressure and could never have been pressurized again.
by Jocelyn Mayer 4/19/2011 11:27:18 AM

@Edano in some safety reports it actualy states that the sudden release of superheated steam reliefing into the torus can cause the lightbulb to lift from it foundation... thats why they did the second mod of a relief from the tours to the external vent system... also building #3 had a "fire or steam line failure BEFORE the Isunami hit ....per the employees... in the building at the time
by fitter 4/19/2011 11:27:49 AM

@fitter @Jocelyn Mayer : okay, thx.
by Edano 4/19/2011 11:29:52 AM

@Jocelyn Mayer good moring... I belive it #3 that has the ring of fire heat img... i blive that is a sealing faluire between the reactor and containment... but have you in your variables the "possible istolations/broken indtruments and the possible cavataion (which is a flaw in the design on this model)
by fitter 4/19/2011 11:31:44 AM

From last data update:
we can now see that #1 RPV is on the way to cold shutdown (if we can say...): it seems now to condense more water than it produces steam: water level has become unstable and seems rising, which is consistent with the temperature being close to the lowest boiling point.
Note that fuel temperature is likely to be higher that the data we have, then steam will sill be produced.
by Jocelyn Mayer 4/19/2011 11:33:57 AM

@Jocelyn Mayer were youable to get the one srould rad report from nklistener... it has some intersting info on how they approch the core during a shutdown.... the rad number and the procedures that are used to lower the numbers to allow the workers in the core....
by fitter 4/19/2011 11:35:51 AM

Isotope geek tool: ie.lbl.gov
by Rob in SF 4/19/2011 11:37:08 AM

Have to run away for perhaps four hours or so... stay cool, everybody... Thanks.
by ALBLEE 4/19/2011 11:38:40 AM

@fitter: good morning
it seems to me that #3 RPV was pressurised until it started condensing, near 4 or 5th of April. The containment vessel did reach atmospheric pressure the 20th of March. Given the data we have now (high temperature & radiation in the drywell), we know some corium has escaped. But the pressure differences between RPV & drywell show there should be no major leak above the water level.
We cannot know where RPV is leaking water, though; can be through the drywell, the torus, pipes, in the turbine building, ... , or from everywhere at the same time...
The explosion did destroy the secondary containment, it may not have breached the primary one by itself (even if its power makes it hard to believe...), we have no data to know about this. Torus is not likely to be broken as its pressure has still not fallen: it's equivalent to 7 meters of water.
What is sure is that pipes, pumps in the reactor building have been destroyed, which give many pathes for water to leak...
by Jocelyn Mayer 4/19/2011 11:45:31 AM

All the techis may like this tepco doc with the safety evaluation of units #3 + #6
www.tepco.co.jp
by elainekirk 4/19/2011 11:47:58 AM

About #3 torus (and the same applies to #1): its pressure, equivalent to a 7 meter water column, given its temperature is low, is means the lowest water leak should be 7m above the torus; blueprints may help finding where the leak(s) is likely to be...
Of course, data may be incorrect, as some pressure reading seem to have an offset from their actual value (my guess, may be wrong).
by Jocelyn Mayer 4/19/2011 11:50:23 AM

@Jo i can see me still sitting here searching for those blueprints in ten yrs :)
by elainekirk 4/19/2011 11:51:55 AM

Overview of the Fukushima Daiichi Nuclear Power Station Equipment
www.tepco.co.jp
by elainekirk 4/19/2011 11:52:17 AM

@Jocelyn Mayer Yes.. i totaled about 36 penetration from the containmt...sure there are more and about 16 off the reactor... I am sure the piping system is destroyed, i don't think everyone undertands the complexity of the piping system.,. the little grafics make it looks simple, but after getting the elevation drawing "THAT went out the window...
by fitter 4/19/2011 11:52:42 AM

@fitter: taking a quick look to the #1 blueprint, my estimation is 7 m above the torus is approximatively where the recirculating loop pump is located. May also likely be near the level of the pipes to the turbine building; would be consistent that the major leaks are there...
by Jocelyn Mayer 4/19/2011 12:00:20 PM

@jo these could well be basic plans but google will not play so I cannot translate you need to scroll www.tepco.co.jp and www.tepco.co.jp
by elainekirk 4/19/2011 12:01:50 PM

@fifter: yes, I'm in France. I now work in software development, but graduated as a mechanical engineer / researcher.
by Jocelyn Mayer 4/19/2011 12:02:59 PM

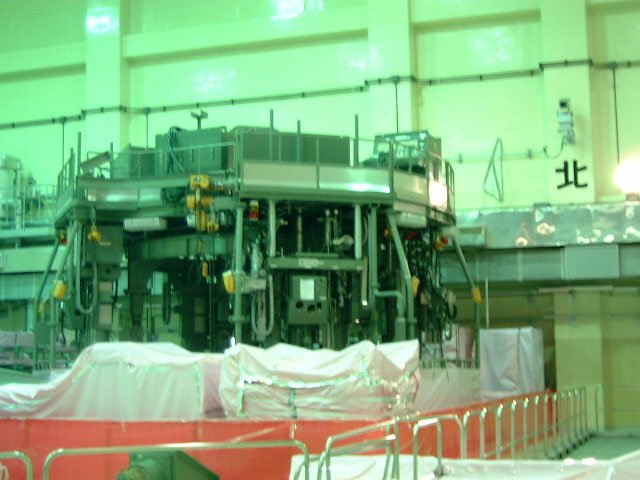

This item is on the reactor work floor. I have no clue what it is or what it does. www.houseoffoust.com
by Nancy via Houseoffoust 4/19/2011 12:39:09 PM

news of the day... monday the paper carrried an article that our power houses lost power staturday night when the Tornado took out its switch gear station... one has been on line, connected yesterday with main feed... second is still on diesl generater....NO addition RAD release other than "Normal Operationing release" do you think i should believe them.... no mention on if they SRAMed....
by fitter 4/19/2011 12:42:04 PM

Robot finds sauna-like conditions around damaged reactor Tokyo (CNN) -- A robot probe found sauna-like conditions inside the No. 2 reactor building at the Fukushima Daiichi nuclear power plant but lower levels of radiation than in other damaged units, the plant's owner reported Tuesday.

Reactor No. 2 is believed to be leaking water, thousands of tons of which are filling the basement of its turbine plant and utility tunnels. A robot inserted into the unit's reactor building Monday found temperatures up to 41 degrees Celsius (106 F) and humidity ranging from 94-99 percent, the Tokyo Electric Power Company reported Tuesday. www.cnn.com COME TO FUKUSHIMA SPA: Relax on the coast in our open-air facility. Located in a very quiet community, with no people surrounding you for up to 20km. Beneficial ionizing treatments for every affliction! Enjoy our sauna and super fission heated hot tubs. Relax as your worries and stress float away with the steam. Make your reservation today!
by Sinthia Domina 4/19/2011 12:43:42 PM

@dean Surry power house ...Nuke of course..
by fitter 4/19/2011 12:43:48 PM

Japan to reach out to firms abroad to ease nuclear concerns english.kyodonews.jp
by Markfm 4/19/2011 12:44:49 PM

@Sinthia Domina LOL Sin.
by Nancy 4/19/2011 12:45:21 PM

@dean killed three people here, 46 still in hospital.. the travel path either went oveer or just missed... missed our house by three miles or jumped or
by fitter 4/19/2011 12:45:36 PM
