@peter - correct. From that angle I can tell the dark area we thought might be reactor well is up too high. Going to grab a copy and mark the floor line brb.
by Nancy 5/3/2011 2:02:07 PM

@askwhy Found the link 4 pages back. Lurker posted it last night. Really don't know anything else. Just thought it might be related to the the blue glow we see periodically on tepcam
by ch 5/3/2011 2:03:37 PM

Comparing 2 May to 3 May plant parameters, #1 is continuing its slow rise in pressure while other parameters are pretty much stable. #2 shows a bump in SC B CAMS, going from 39 to 47 Sv/hr. #3 core temps are up by 17 and 12C, now at 117C and 135C.
by Markfm edited by Markfm 5/3/2011 2:03:44 PM

@Angie @ch Sounds like one to keep an eye on... (I had no idea that there was a live feed -- there goes a few more hours daily
)
by Askwhy 5/3/2011 2:04:46 PM

night time?
by Dave 5/3/2011 2:05:12 PM

www.greenpeace.org Greenpeace start monitoring seewater and fish Lets see how far they get.
by Dude 5/3/2011 2:05:19 PM

@All This is about news I have been finding from russian sources that I posted on the other board... and here is the main page from where I am pulling this stuff, It is where I first came across that blueprint(the one that's a photo of a copy), it's in a story about achieving a water sarcophagus. Story with Blueprint translate.google.com.au
Main page translate.googleusercontent.com
by Thunder 5/3/2011 2:05:24 PM

@bo, are you still listening? Can you set your counter to simply count gamma counts?
by Peter Melzer 5/3/2011 2:05:42 PM

@Peter Melzer : i wish anyone could do that. the RPV possibly jumped upwards and the top a bit west. a very scary hypothesis.
by Edano 5/3/2011 2:06:02 PM

@Askwhy Only been up for 12hrs now. Its 11pm in Japan so it is very dark and well no big lights at the site so not much to see at night.
by Angie 5/3/2011 2:06:06 PM

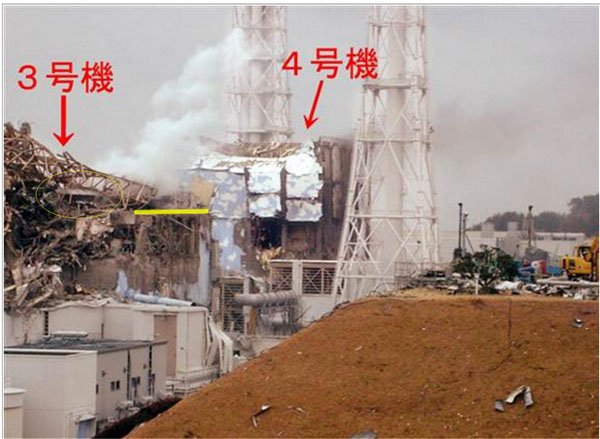

Floor line marked on Peter's photo www.houseoffoust.com
by Nancy via Houseoffoust 5/3/2011 2:06:33 PM

I think the higher up dark object is the crane beam. The large overhead crane is lying on top of the deck. So either reactor well steam or fuel pool steam floating up behind it giving that illusion.
by Nancy 5/3/2011 2:09:13 PM

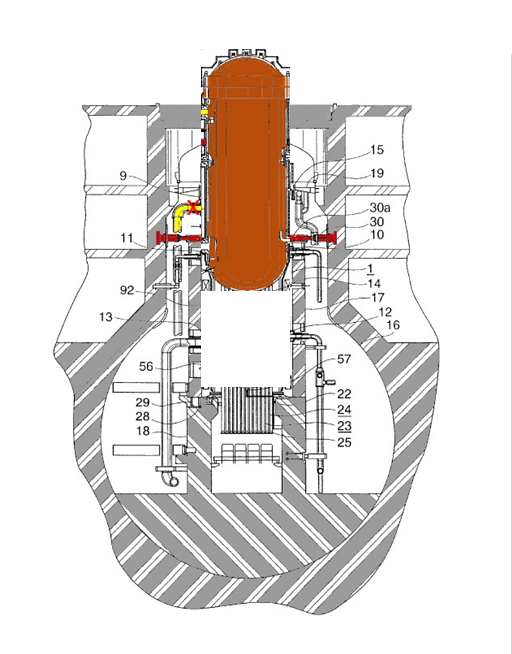

@Nancy, exactly, if we knew the distance from the yellow line to the floor below in actual mm, we could use that to calibrate the distance from the yellow line up to perhaps the mid height of what we believe is the top of the containment inside the circle.
by Peter Melzer 5/3/2011 2:10:35 PM

@Edano They did modifications to the mark 1 units to try to counter the jumping problem. What I read said it could easily jump 8 inches in what they considered a pressure/heat incident. I don't think they took what happened there into account.
by Nancy 5/3/2011 2:11:19 PM

@Peter. The yellow line it top of the concrete grid. I can see the next row below it on the wall. About a 7950mm size between floors including the grid itself.
by Nancy 5/3/2011 2:13:05 PM

is this possible ? s1.directupload.net
by Edano via S1.directupload.net 5/3/2011 2:13:06 PM

one comment on the forum suggests that the crane at plant 3 fell into the SFP
by dean 5/3/2011 2:14:20 PM

@peter. So the height of the dark object, possibly the crane beam is 1987.5mm roughly. We do know the cap is still on the RPV though (heat images show it is) So the RPV lip can't be that high. The containment reactor well lip is built into the building and can be seen in other views as still part of the deck. I think it is likely the crane beam giving a visual illusion.
by Nancy 5/3/2011 2:15:15 PM

@dean Refueling crane? It may have blown apart. There was some small pieces that might be of the deck and railing on the other side of 3 in the rubble. That adds to the SFP blowing up, it destroyed the crane?
by Nancy 5/3/2011 2:16:26 PM

I'm not seeing any references to concrete pump truck water injection to #4 after 27 April. I'm also not seeing any references to any other water injection mechanism being used there. ?
by Markfm 5/3/2011 2:18:18 PM

probably Nancy.. with out better confirmation tho.. not certain
by dean 5/3/2011 2:19:15 PM

www.abovetopsecret.com nancy see if this plays into things
by dean 5/3/2011 2:20:44 PM

Does anyone have a web addy for the new packbot video? All tepco has in the zip download.
by Nancy 5/3/2011 2:23:56 PM

@Markfm It is the only known water system at 4. They told the media about watering later in the week but have not looked at the status sheets for it again.
by Nancy 5/3/2011 2:24:55 PM

another term to think about... POOLIUM.. in addition to CORIUM
by dean 5/3/2011 2:25:32 PM

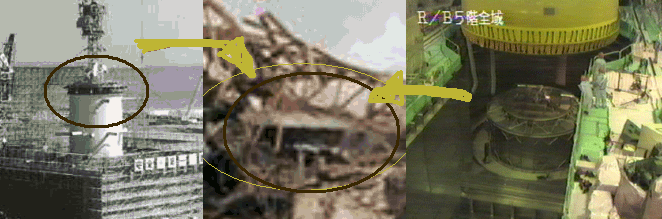

@Nancy, how do we square our assessment with what we see on these pics s1.directupload.net Edano posted yesterday? Looks like there is some sort of a flat platform installed ontop of the domed reactor cap.
by Peter Melzer via S1.directupload.net 5/3/2011 2:26:19 PM

Previously they were injecting water every 2 days, 4 was the longest gap. Now they're at 6 without injection.
by Markfm 5/3/2011 2:26:31 PM

Unmanned machines enlisted at N-plant www.yomiuri.co.jp "Remotely controlled systems manufactured by Toshiba Corp. and Hitachi Ltd. will be installed in a German-made concrete pumping vehicle to equip it for unmanned operation.

The vehicle will be used to pour water into pools where spent nuclear fuel rods are temporarily stored."
by Markfm 5/3/2011 2:28:29 PM

@Nancy Don't have an addy, but elainekirk posted that bot vid on this board about 4 hours ago.
by es 5/3/2011 2:29:21 PM

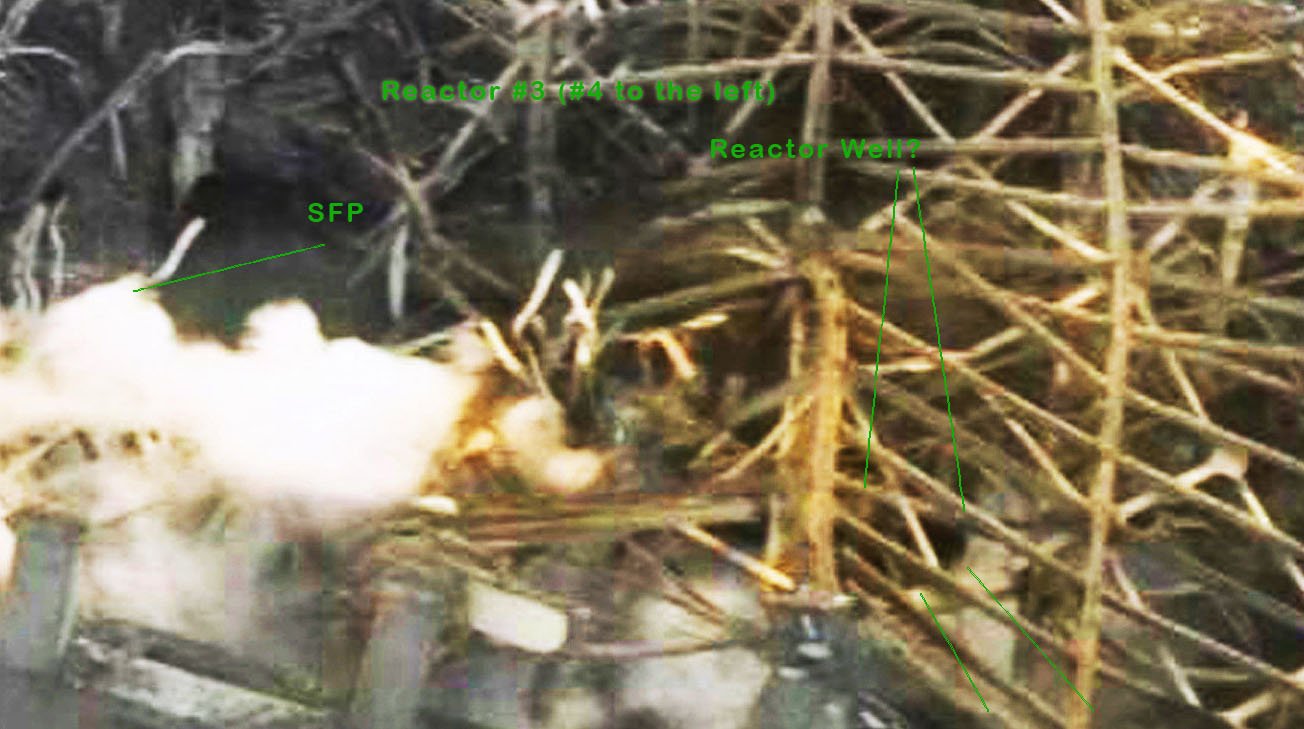

@Peter Melzer That is a steam separator and it sits over the rpv cap. If you look at other angles you can't see anything like that and there is one where you see into the reactor well lip itself. www.houseoffoust.com
by Nancy via Houseoffoust 5/3/2011 2:30:29 PM

Utilities got 68 ex-bureaucrats via 'amakudari' search.japantimes.co.jp "At present, 13 retired career-track METI bureaucrats hold senior positions at electric power companies"
by Markfm 5/3/2011 2:31:08 PM

@dean the abovetopsecret link. I think he might have it half right. The area he had circled as burning roof material is where green mangled items have been seen that look like possibly refueling crane parts. That would add into the blast going off toward that most destroyed corner.
by Nancy 5/3/2011 2:32:40 PM

@Markfm that doesn't sound right with the leaking and steam increased lately. They stopped giving out heat images on the 26th.
by Nancy 5/3/2011 2:33:53 PM

that seems right Nancy
by dean 5/3/2011 2:34:21 PM

UPDATE 1-Japan nuclear plant workers set up fans to cut radiation, repair www.reuters.com "The company said it had begun constructing special tents at the entrance to turbine buildings so workers can move in and out. It is also installing fans with filters at the No.1 reactor to reduce radiation inside to one-twentieth of current levels within days. "
by Markfm 5/3/2011 2:34:40 PM

@Nancy -- Beats me, I'm just using the NISA status reports, no listings for water injection on 4 since the 27th. These are the last two entries for #4: - Concrete pump trucks (62m class) to about 85t by discharging a fresh (April 27 - 12:18 14:01/14:32~15:15) 14:01 / 14:32 to 15:15) - Discharge of white smoke could not be confirmed (May 3, 6:30 now).... I see the last injection on the 27th, then the report of "unconfirmed" white smoke as of 3 May.
by Markfm edited by Markfm 5/3/2011 2:36:45 PM

@Markfm So where is this "air" going without scrubbers?
by marie rich 5/3/2011 2:38:21 PM

@Markfm Unit 3's temp is creeping up again, too. and this cryptic statement on atmc.jp regarding unit 4: No. 4 in the absence of inspections stopped reactor fuel assemblies for, are excluded from the list.
Meaning of the terms in the graph below.
by marie rich 5/3/2011 2:38:22 PM

Could fhm = fuel handling machine/module = crane?
by marie rich 5/3/2011 2:38:25 PM

@Markfm We are seeing steam or smoke almost daily for a few hours. Between the heat images stopping, no SFP temps listed and the NISA data missing this really looks like they are hiding something. Do we have reliable real time radiation monitoring from really close by? I have to wonder if this is releasing radiation.
by Nancy 5/3/2011 2:38:30 PM

@marie rich they are installing the scrubbers, it seemed like the scrubbers and fans system is forcing air to move more. Probably areas that are not clearly open to the environment that are trapping concentrated contaminated air?
by Nancy 5/3/2011 2:40:03 PM

now that's probably it marie..
by dean 5/3/2011 2:40:07 PM

@Nancy, so if we identified that, its top could be used to provide the elevation of the reactor.
by Peter Melzer 5/3/2011 2:42:08 PM

@Markfm Tepco has a schmatic showing them using a "tie-in point" at the radioactive wastetreatment building... its ties into the "outlet side of the "filter desalintion Equipment " with a Tie-in to the what they are calling a "sampling line" from the Skimmer Surge Tank", were i found it did not have a link, I just printed the schematic... but it shows the lines running to the SFP (what bld??) and just showed up in the last two days...
by fitter 5/3/2011 2:42:56 PM
