@toad this is I think the challenge for 2012. How to help those without the resources to leave.

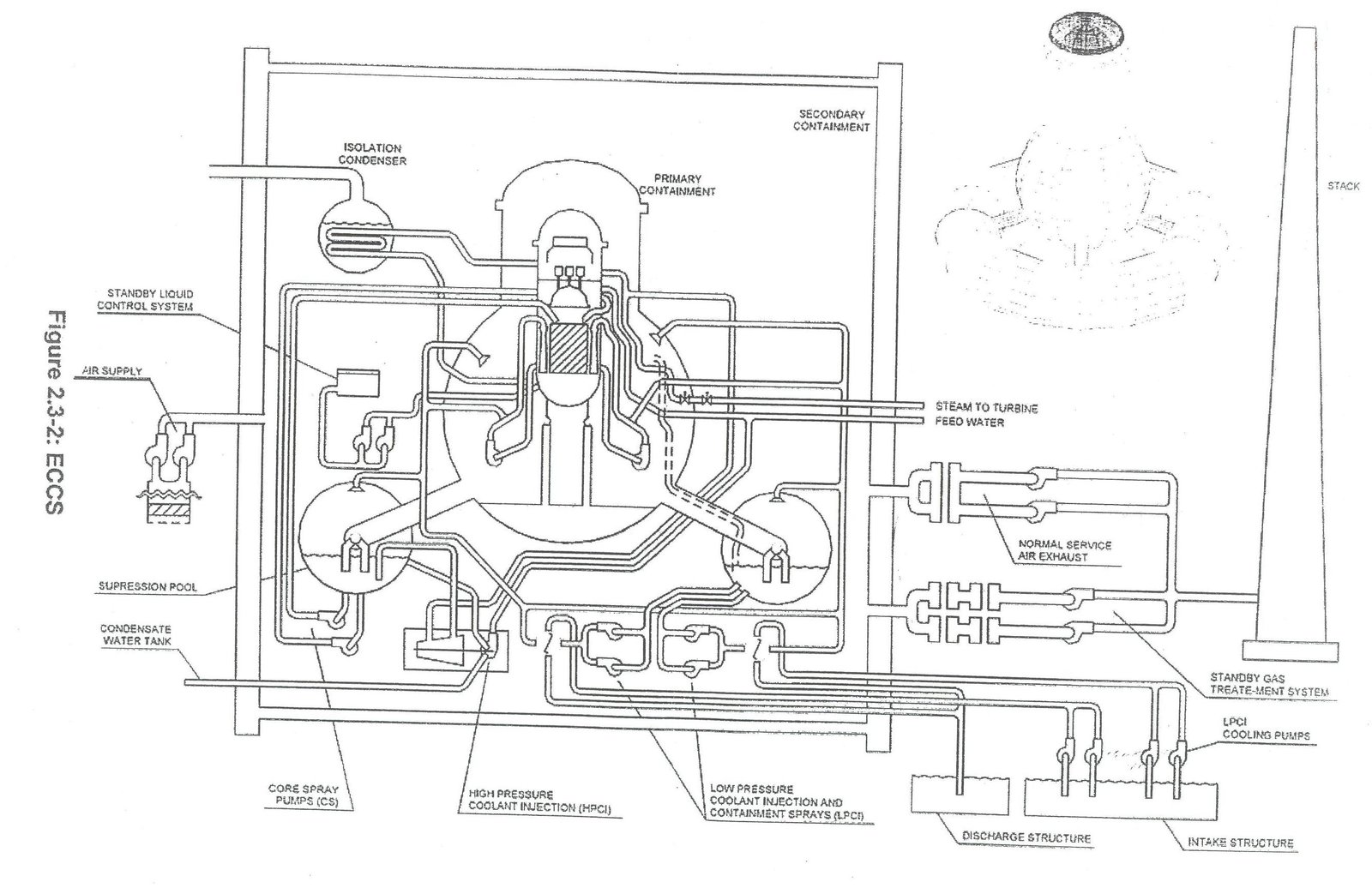

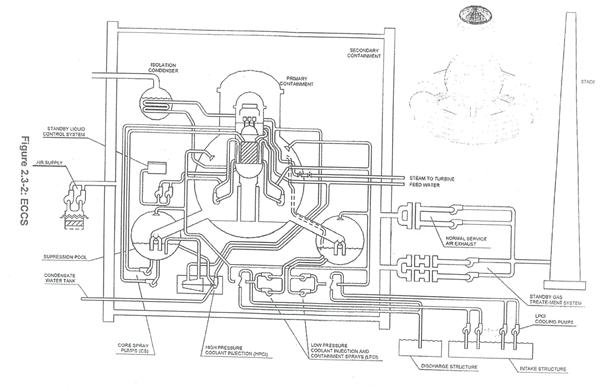

according to the diagram the isolation condenser has its own vent pipe. this might be the small corner one.

Found it!
From Peter's blog:

In normal operation, the tall stack towers between Units 1 and 2 and Units 3 and 4 at Fukushima Daiichi nuclear power station are designed to vent filtered, decontaminated off-gases from the main steam turbine [Row TH (1973) Radioactive Waste Systems and Radioactive Effluents]. By contrast, separate shorter stacks attached to the reactor building walls provide venting for uncontaminated effluents from the buildings. If increased levels of radioactivity are detected, the effluents will be routed through the Standby Gas Treatment System to the stack. This system also filters gases from the primary containment. Compared to the towers, the stacks for uncontaminated effluents are short, ending just above the roofline. One is still visibly intact on the Northwest corner of unit 2: brainmindinst.blogspot.com

I wrote up what we have so far on the blow out panels and the quake. If anyone has something I missed or did not explain correctly let me know.
www.simplyinfo.org

Reading this workers blog, he mentions blow out panels in the turbine buildings. They opened one on unit 1 turbine building. So apparently those buildings did not have the blow out panels welded shut? members.jcom.home.ne.jp

This hasn't made English language news yet. People in the government knew that the cost to just store fuel was considerably less than reprocessing would cost but hid this information.

Biennial cycle: energy agency chief directed 2004 direct disposal cost concealment

　In April 2004 he was director of the Agency for Nuclear Energy Policy Secretariat, Ministry of Economy, the Deputy Director of the Ministry Masaya Yasui, simply discard the spent nuclear fuel without reprocessing "direct disposal" costs of concealment of assets ( concealment) were able to tell the people, and notes found in the testimony of participants. Reprocessing, but national policy, it becomes obvious, and found to be less expensive than direct disposal reprocessing seems accelerating the push for policy changes.

　Two months later, the program has been compiled to pay people about 19 trillion yen in operating costs incurred in Rokkasho-mura reprocessing plant in Aomori Prefecture, has emerged an important decision that led to suspect hidden data.

　Reprocessing around since 2002, has been found that was seeking to withdraw from the reprocessing business leaders of TEPCO and METI. Mr. Yasui has been involved in policy for many years in nuclear propulsion officer, Department of Nuclear Engineering, Kyoto University graduate. So-called "bubbles" Nuclear's motion to withdraw the sealed form.

　Assets MITI (then) commissioned business, Foundation Center "Nuclear Environmental Improvement" (Center for Nuclear Environmental Management Funding and present) in 1998, to 6 trillion yen, 4.2 trillion cost of direct disposal was calculated. If reprocessing direct disposal (approximately 19 trillion yen), which means living on less than one-quarter of 1-3.

　Memo obtained by the Mainichi Shimbun, April 20, created in 2004, ministry officials. "Subordinates (note real name) yesterday, to Mr. Yasui (the existence of assets) were told," so as not to touch the eyes of the world "down with the assertion" that is stated.

　People are told, from easy to "put me out of sight at the estimated" and recognized that it was directed, "was also a pile of other documents discreetly, on the floor behind the chair put "and testified.

　Advisory body to the three-phase system "Electric Utilities Subcommittee on Energy and Natural Resources Committee," as in May, was seeking out opinions from members costing more direct disposal. Nuclear Policy Division communicate the existence of these assets was the division in charge of the subcommittee members, the same subcommittee in June, about 19 trillion yen for the industry, the proposed introduction of a new surcharge on electricity prices for households summarizes. This is the "domestic reprocessing" nuclear power has led to the current policy outline to stick with.

　Yasui said in an interview "(it has been estimated that people have not) but could have been (directed concealed) does not remember," he said. Biennial cycle [crew]

　Reprocessed to retrieve reusable uranium and plutonium from spent nuclear fuel used in nuclear reprocessing and direct disposal ★. Such as direct disposal to bury in the ground for disposal without reprocessing. Has been promoted from the 1960s to the nominal reprocessing and energy security, cost savings are higher uranium remain in 10-20%. Made from reprocessed fuel (fuel MOX) in LWRs is not willing to use only about a quarter of the planned reprocessing plant in Rokkasho-mura, Aomori Prefecture is not running even after 18 years after construction. mainichi.jp

Nothing on 3pm Jan 1 plant report. They did adjust water feeds at 1 & 2 due to some water feed fluctuations after the quake and temps at1 have been going up and down for some reason www.tepco.co.jp

another report on unit 4 sfp leaking www.tv-asahi.co.jp

Tank adjacent to the spent fuel pool in Unit 4, Fukushima Daiichi nuclear power plant has been confirmed that degraded at a rate nearly five times the normal level. TEPCO is in a hurry to identify the cause. 　Around 5:30 pm on October 1, adjacent to the spent fuel pool at Unit 4 "gap surge tank," found that the water level drops relatively quickly. Normally it is reduced by evaporation, etc., that was five times as fast. So far, water leaks around the reactor building cooling systems and have been found circulating in the pool. If cooling continues the pool itself, and changes in water temperature is in that space. TEPCO will conduct joint investigations, such as pipes, in a hurry to identify the cause of the reservoir drawdown.

did the leaking begin with the quake ?

maybe the pool cracked in the end...

@Edano A crack is possible and that is part of the structural worry from the start. IIRC the cooling circulation had to be fudged on unit 4 because the normal circulation system was so damaged. So unless the new temporary water system is somehow causing water to drain out of the skimmer they have a pool leak somewhere.

I googled "spent fuel pool skimmer tank" and got an NRC document about beyond design basis failures at BWR spent fuel pools involving the skimmer tank! Eeep! www.nrc.gov
