@radioguy that is brilliant workby elainekirk 4/10/2011 8:10:58 PM

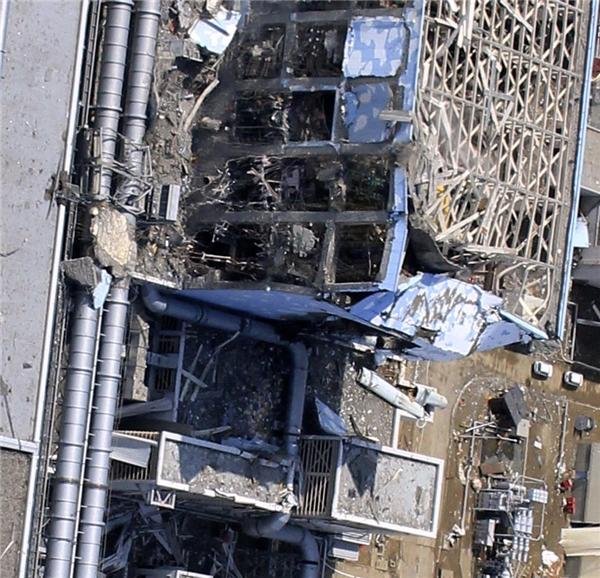

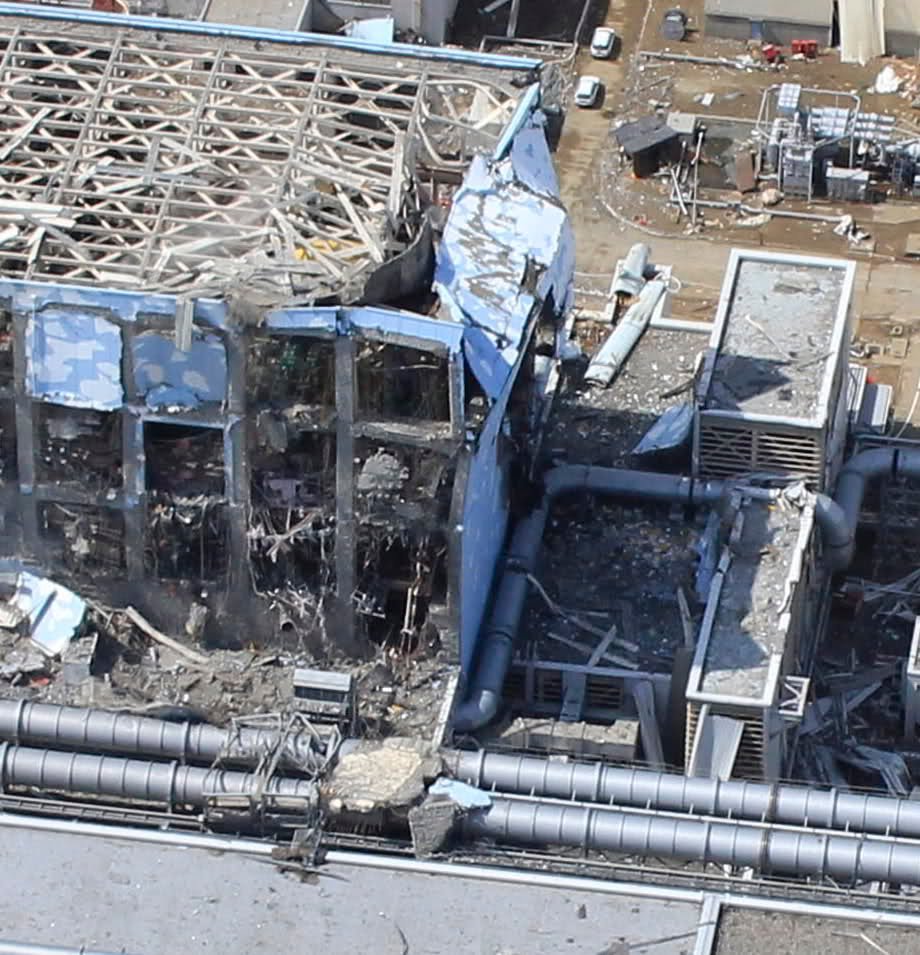

you can also see its falling inward from the 2 picsby George Gibb 4/10/2011 8:11:56 PM
@elainekirk Just following up on Tenzing's question. Collaboration. That's where it's at.by radioguy 4/10/2011 8:13:47 PM- SO now, my question is, what got taken out in R4 by that strike? More than just the framing was pushed aside. and something stopped it cold. It had some momentum.by radioguy 4/10/2011 8:15:56 PM

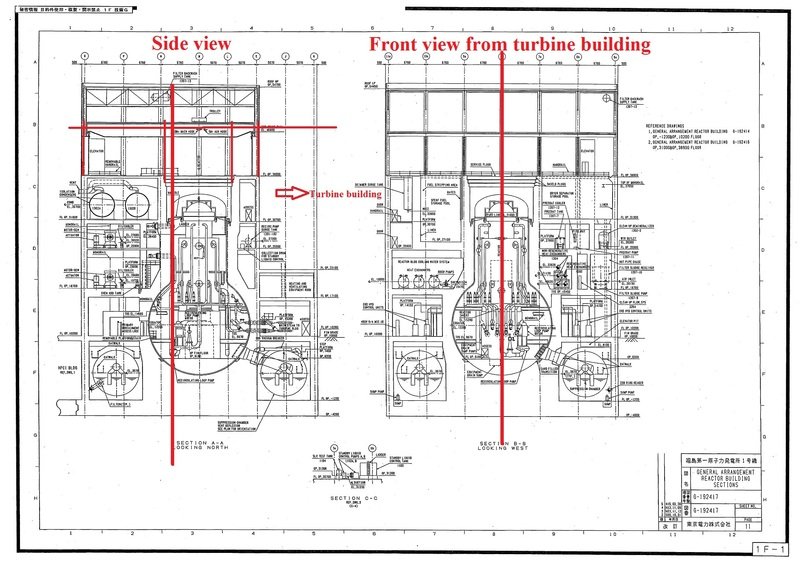

here is correct core location ina all units, it is not in center: img28.imageshack.us
by John via Img28.imageshack.us 4/10/2011 8:16:18 PM
it looks like concrete to me- but i'm blind in one eye and can't see out of the otherby marie rich 4/10/2011 8:16:25 PM- @John So that serious hotspot is NOT the core?by radioguy 4/10/2011 8:17:00 PM
- @radioguy no it is SFPby John 4/10/2011 8:17:36 PM
- SFP on tle left, core in center but closer to turbine building, tools pool on the rightby John 4/10/2011 8:18:24 PM
- @marie rich It looks like steel over concrete. IS that how the outer walls are constructed? Concrete building, decorative and protective steeland/or lead ((really malleable) outside wall?by radioguy 4/10/2011 8:18:51 PM
- @Nancy think that core is exactly in center, but it is not correctby John 4/10/2011 8:19:15 PM
- @John How far along that side does the SFP extend?by radioguy 4/10/2011 8:19:41 PM

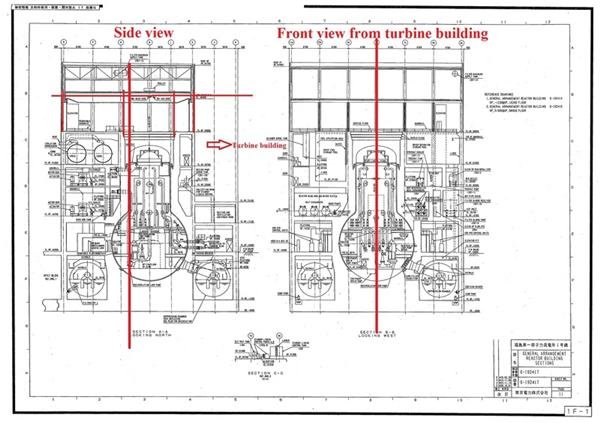

by John via Img155.imageshack.us 4/10/2011 8:20:16 PM- @radioguy You can see on this drawingby John 4/10/2011 8:21:26 PM
- @al collabotators great work :)by elainekirk 4/10/2011 8:21:34 PM
- @John the diagram on the right has core centered.by marie rich 4/10/2011 8:22:03 PM
- @marie rich is in center axis but not in center it is closer to the turbine building, look on left image of the drawing it is side of reactor building, look on red linesby John 4/10/2011 8:23:54 PM
TEPCO uses unmanned equipment to remove rubble
Tokyo Electric Power Company has bugun using unmanned heavy equipment to remove radioactive rubble at the tsunami-hit Fukushima Daiichi nuclear plant.
Hydrogen explosions blew off the ceilings and walls of the Number One and Number Three reactor buildings. The debris is emitting hundreds of millisieverts of radiation per hour in some places, hindering the restoration work. www3.nhk.or.jpby NHK Listener 4/10/2011 8:25:04 PM- maybe you two just disagree on perspective, i.e. which side you're looking atby marie rich 4/10/2011 8:25:20 PM
- well in either case, the core location in the heat map John posted looks correct..by Sims 4/10/2011 8:26:34 PM
- @NHK Listener but they let the firemen go in with minimal protection *headshake*by marie rich 4/10/2011 8:26:44 PM
i was looking at pics of #4. does anyone have explanation how could hydrogen get to lower floors than SPF is locaeted?by trh 4/10/2011 8:27:07 PM- There was a lot of discussion on the physics blog about the weak spot in this design in an explosive situation being the bolt holes drilled into the concrete lip inside the drywell for the refueling cap. There was speculation that the drywekk hav explosively vented out through the holes and blown out the cylindric well above it. What if a piece of that, arced as it would be, blew out through the R3 wall, taking the blue and clouds covering with it, then smashed and rolled on the R4 building?by radioguy 4/10/2011 8:27:10 PM
- Just another speculation. I'm off to the station.by radioguy 4/10/2011 8:27:54 PM

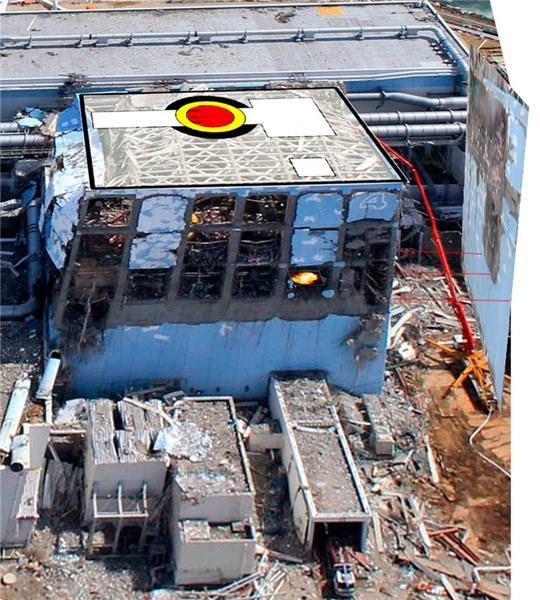

@Sims img51.imageshack.us
by John via Img51.imageshack.us 4/10/2011 8:28:30 PM- The drone has been over, hopefully the pics/video will be released in a timely manner.by elainekirk 4/10/2011 8:29:35 PM
- @trh that IS a good question. if #4 was in operation it would be the torus. but hydrogen is lighter than oxy, so it couldn't have settled. do you have any thoughts?by marie rich 4/10/2011 8:30:00 PM
- @trh Like filling up a balloonby NHK Listener 4/10/2011 8:30:16 PM
- @elainekirk New heat maps yeah.. would be nice.by NHK Listener 4/10/2011 8:30:53 PM
- @elainekirk blessed be the peacemakers...:-)by marie rich 4/10/2011 8:31:03 PM

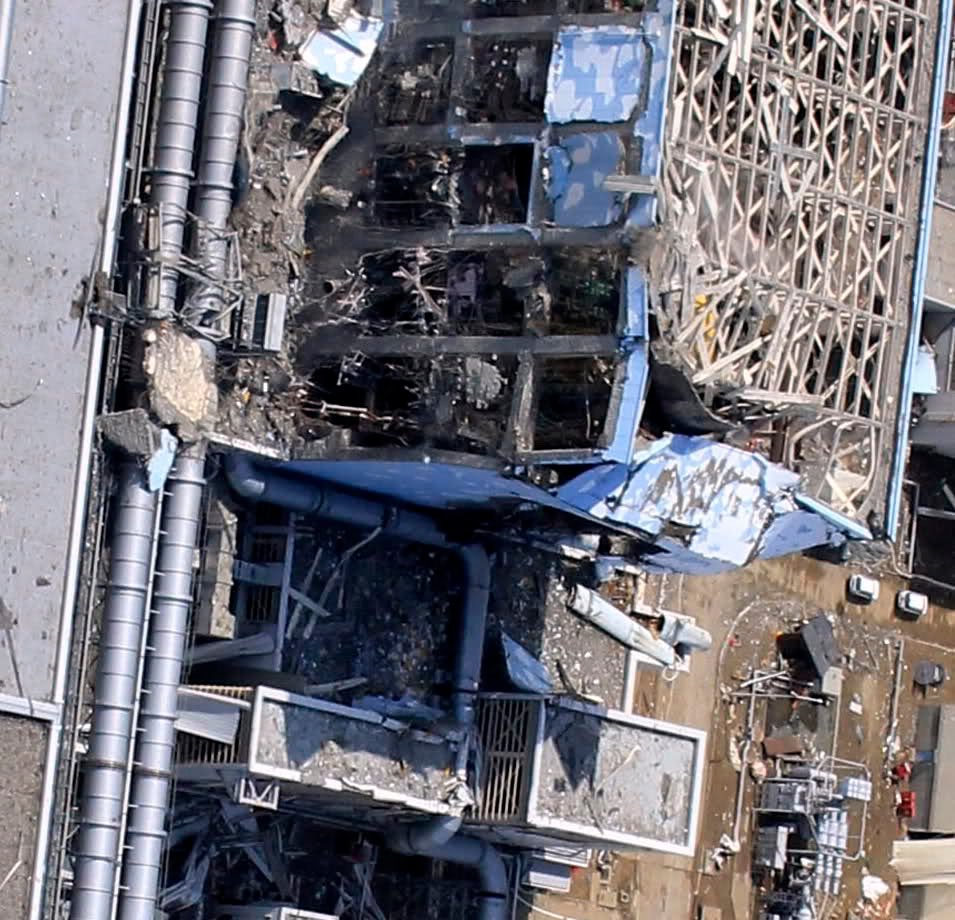

by Tenzing via I54.tinypic 4/10/2011 8:31:34 PM
by Tenzing via I56.tinypic 4/10/2011 8:31:34 PM- @trh It's being vented under pressure. It seemed that meant out through the torus cap. If so, it came out low in the first place.by radioguy 4/10/2011 8:32:06 PM
- @NHK Listener so the airtight doors were open allowing hydrogen to fill up whole buildig... guess it might happenby trh 4/10/2011 8:33:45 PM
- @radioguy i was at #4 at the moment..by trh 4/10/2011 8:34:57 PM
- @trh Filling up the vent systems.by NHK Listener 4/10/2011 8:35:35 PM
- @trh i think you have a real point. and i don't recall #4 being vented, but i'll go check brbby marie rich 4/10/2011 8:36:40 PM
- during emergency all the wents should also close automatically?? or did i misunderstand somthingby trh 4/10/2011 8:36:55 PM
- @trh 4 had no fuel in the reactor,, so all the hydrogen would have started to accumulate in the top of the building from the sfp. Fill it up enough and have someone go in there to see what is going on a few times.. Try and turn on a vent system.. vents fill up..stair wells fill up,,, boom opinion.by NHK Listener 4/10/2011 8:40:29 PM
- @marie rich Here's something I was working up for reporting. It's an awkward format, but it's probably very useful. I took the NYT status updates, drew them in and sorted them by reactor with ascending dates.
spreadsheets.google.comby radioguy 4/10/2011 8:40:55 PM - MARCH 15, 6:00 AM
A hydrogen-gas explosion created by chemical reactions with the spent fuel rods damages the building. A fire also breaks out.by radioguy 4/10/2011 8:42:37 PM - @radioguy I like it -- alot. but unit 4 had two fires on the 15Mar. one a.m. ended @ about 11:00, the other ended about 6 o'clockby marie rich 4/10/2011 8:44:25 PM
- MARCH 16, 5:45 AM
A fire is reported in the building. An inspection 30 minutes later finds no sign of a fire.by radioguy 4/10/2011 8:44:52 PM - might be wrong on times, but there was two firesby marie rich 4/10/2011 8:45:43 PM

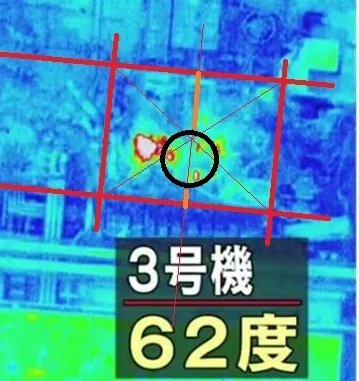

by John via Img825.imageshack.us 4/10/2011 8:48:12 PM
