Japan Earthquake

Japan Earthquake | Page 989

@Jim Carver : it's richter 5.3 on usgs: Thursday May 5 2011, 17:04:29 UTC 33 minutes ago eastern Honshu, Japan 5.3
by Edano 5/5/2011 5:55:31 PM

@Nancy - IIRC they did originally plan to dump water at #5 & 6. I never heard if they did it though or whether they decided ontanks instead
by UKVal 5/5/2011 5:56:39 PM

NEWS ADVISORY: M5.3 quake jolts Fukushima Pref., no tsunami warning issued english.kyodonews.jp
by Edano 5/5/2011 5:56:49 PM

@Nancy -- I remembered your comment on temps given to reporters, just that it is surprising to not see them do anything in writing -- a large amount of white "smoke" would mean > 100C, IMO.
by Markfm 5/5/2011 5:57:05 PM

They've been removing water, from both 5 & 6. On 3 May, removed 114 cubic meters of water from the #6 turbine bldg basement to a temporary tank. For #5, "(about 600m3) in the basement of the turbine building of Unit 5 to the Condenser"
by Markfm 5/5/2011 6:01:14 PM

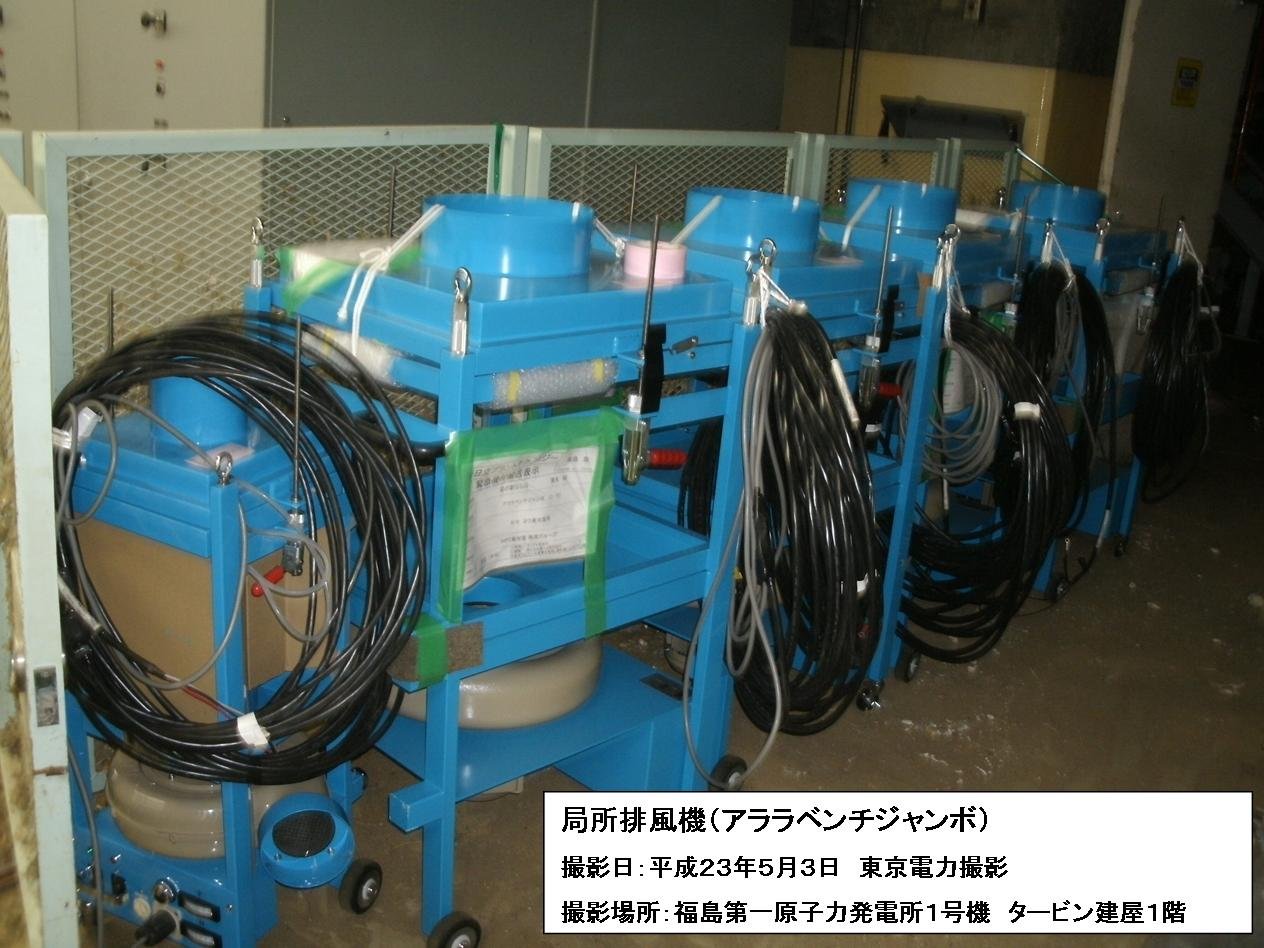

The ambient air filters... Alari Venti Jumbo
www.tepco.co.jp
by Rob in SF via Tepco.co.jp 5/5/2011 6:01:35 PM

Re: water in 6 -2:00 pm on May 1st : the transfer of accumulated water in Unit 6 turbine
building to a temporary tank was started
by marie rich 5/5/2011 6:02:34 PM

@Rob in SF Looks like they would work well in my garage or small warehouse if I was doing some painting.
by Jim Carver 5/5/2011 6:05:32 PM

@Markfm have we ever gotten an answer to the origin of that water? I had someone email me today asking about why the water in 5 & 6 were showing radiation.
by Nancy 5/5/2011 6:06:14 PM

Not that I recall. I don't know if #5 and #6 have some small (relatively) leaks in their piping, or if it is a groundwater intrusion.
by Markfm 5/5/2011 6:07:18 PM

@Markfm This is why I contacted and asked the reporter. I pointed out the coordinated lack of heat images that started at the same time the SFP's started steaming on a regular basis. Had not heard more back. I wanted to put the notion to various people about why is TEPCO being less than informative about an obvious new problem.
by Nancy 5/5/2011 6:08:01 PM

@Markfm Those 2 sit up much higher than the other units. I don't remember seeing any answers to any of this passing through either.
by Nancy 5/5/2011 6:08:55 PM

@Jim Carver Bet they have a hefty price tag...
by Rob in SF 5/5/2011 6:09:58 PM

@ Nancy - IIRC turbine buildings for 5 & 6 were flooded during the tsunami. There was discussion here some time ago aboout whether the cable tunnels stretched as far as these reactors. As you say -they sit higher up
by UKVal 5/5/2011 6:12:01 PM

@UKVal intermingling of water would explain the contamination.
by Nancy 5/5/2011 6:12:27 PM

From an AP site I get "Workers also are pumping less-radioactive water into the ocean from the basements of Units 5 and 6." That indicates it isn't just "clean" tsunami water.
by Markfm 5/5/2011 6:17:09 PM

@Nancy sorry!!! cripes must stop using my graphics pad as a mouse!! just deleted you eeeeeeeeeeeeeeeek
by elainekirk 5/5/2011 6:23:41 PM

@wtm @bo will get someone to read it and give you gist or try translate.google.com
by elainekirk 5/5/2011 6:26:38 PM

@elainekirk did you have any luck finding the original on the info on your hand schetched drawing???
by fitter 5/5/2011 6:26:59 PM

I have done my duties now fitter and am settling down with google to get your stuff
by elainekirk 5/5/2011 6:27:44 PM

indeed -how did the water near #5 & 6 become contaminated? So many unanswered qu's - we could do with a page devoted to each so that people could either post solutions or lacking that, theories
by UKVal 5/5/2011 6:28:42 PM

@ukval that'll be the trillion yen question @fitter this isn't it but it is up your street it is GE's comment on modifications to it's fukushima reactors
NOTE! it say's --We understand that all of the BWR Mark I containment units at Fukushima Daiichi also addressed these issues and implemented modifications in accordance with Japanese regulatory requirements.-- which interprets as - we have no idea or are not telling you what mods were made at fuku
www.gereports.com
by elainekirk 5/5/2011 6:33:35 PM

@Elaine Kirk, looked at the METI stats for the reactors, and on the last page, in the Reactor #3 column, at the D/W row, there is a temp figure of RPV 228.1 degrees C. Can't figure out what this is relating too. I have never seen anything that high on #3, need to find out what the Japanese writing around it is referring too !!!! Is this a D/W temp or an RPV temp ? If it is a D/W temp, that means corium is in the D/W and it is active !!
by wtm 5/5/2011 6:33:44 PM

@elainekirk OMG LOL. Per Japanese requirements and the Japanese mostly left it to the power companies to decide if changes were needed.
by Nancy 5/5/2011 6:34:51 PM

@wtm hopefuly somebody will now jump in and answer your question as I have no idea
@nancy I thought you would like that
by elainekirk 5/5/2011 6:35:38 PM

@UKVal, could it be from water spill from the SPF's during the quakes the last several weeks, nothing is on top of the SPF's to prevent that.
by wtm 5/5/2011 6:36:31 PM

mdn.mainichi.jp
TEPCO president makes kneeling apology to nuclear crisis evacuees.
mdn.mainichi.jp
by Rob in SF via Mdn.mainichi.jp 5/5/2011 6:38:12 PM

@Nancy, YES, I know that, but this figure is underneath that column and it says "RPV 228.1 C" , that is why I was trying to get somebody that spoke the language to decipher it. It is the last page of the latest METI stat (posted above),
by wtm 5/5/2011 6:38:43 PM

The 228C is the Drywell RPV Bellows Seal temperature. Here's yesterday's version of the NPP table in English, so you can decode the entries: www.nisa.meti.go.jp
by Markfm 5/5/2011 6:39:32 PM

@MarkFM, where do you get those copies ?? Next question is ? Where is the "Bellows seal" and what does it do ??? 228.1 C is really HOT, and it looks like it is increasing, from the chart you just posted. If it is a reference to temps in the D/W than there is something in the drywell hotter than heck !!!! And getting hotter !!!
by wtm 5/5/2011 6:43:51 PM

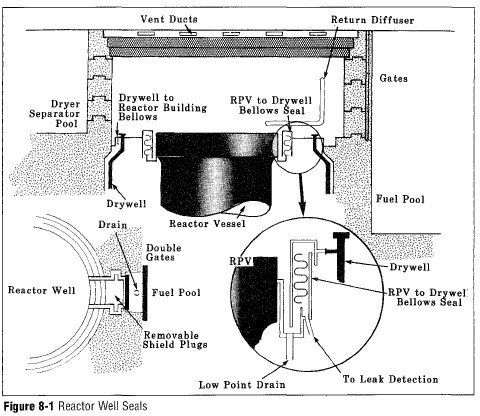

The bellows seal is between the drywell and the reactor, near the top of the reactor. I'm not sure if this figure is precisely a Mark 1, but it should give you an idea of what they're talking about:
by Markfm 5/5/2011 6:50:01 PM

@MarkFM, looking at the one from yesterday you posted below, and todays stats, there is a huge increase in #2 CAMS, S/C #2 stat, yesterday was 5.34 x 10 Svh (high), todays stat is 8.35 x 10 Svh (really high) !!!
by wtm 5/5/2011 6:50:07 PM

@MarkFM, THAT doesn't make me feel good, if that seal is now that high a temp ???? Would ask the question, at what emp
by wtm 5/5/2011 6:52:41 PM

Morning fingers...... At what temp does the seal melt ??
by wtm 5/5/2011 6:53:15 PM

wtm, that is right, noticeable increases: 39 - 47 - 53 - 84, over the last few days. I really do wonder if there is some kind of scabbing kind of effect, crud builds near that sensor then it peels off (remember it was a lot higher a week or so back, then dropped a huge amount in 1 day)
by Markfm 5/5/2011 6:55:43 PM

Talking about seals melting makes me blubber :(
by elainekirk 5/5/2011 6:56:24 PM

The link for the extracted figure: www.ucsusa.org , "Nuclear Waste Disposal Crisis", a couple of chapter extract from it.
by Markfm edited by Markfm 5/5/2011 6:56:35 PM
